RDG -sylinterit

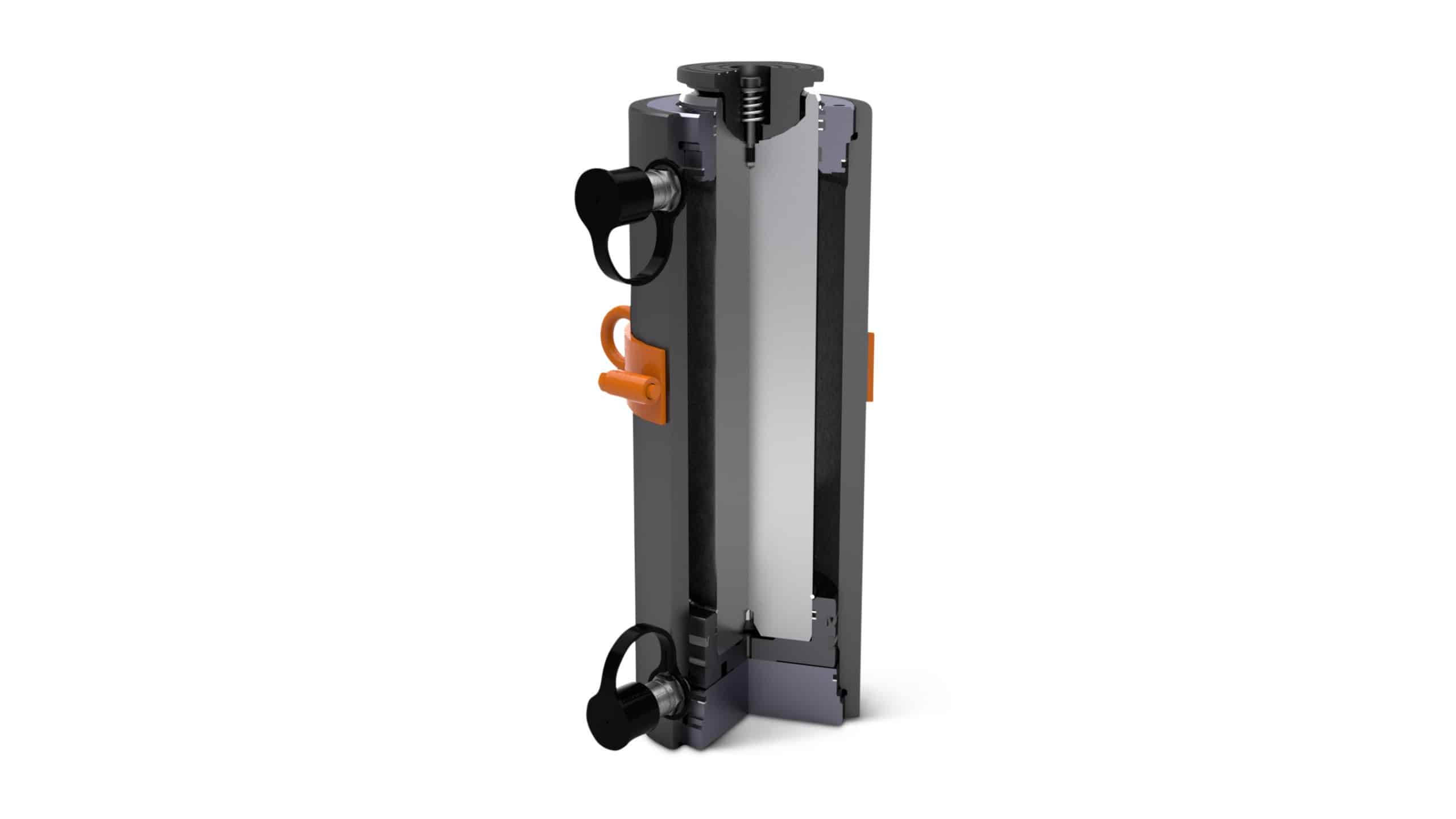

RDG -sylinterit on raskaisiin hommiin tarkoitettu kaksitoiminen sylinterisarja. Kallistuva satula on vakiona kaikissa RDG sarjan sylintereissä. Power Team RDG sylintereissä on ylipaineventtiili paluulinjassa.

Power team sylintereiden ominaisuuksia:
Sylinteriporaukset on rullavalssattu. Tällä menetelmällä saadaan aikaiseksi kovempi ja tasaisempi pinta, parempi korroosionkesto ja 30 prosenttia pidempi tiivisteiden ikä.
Terässylintereiden kulutukselle altteimmat kohdat on pinnoitettu joko sinkki-, kromi-, tai Power Tech pinnoitteella.
Sylinteriputkien raaka-ainetangot on tutkittu magneettisesti.
Päätypysäytyslaakerilla varustetut sylinterit voidaan kuormittaa täydellä 700 barin paineella täyteen iskuunsa.
Kaikki sylinterit on testattu tehtaalla 861 barin paineella ennen pakkausta. (paitsi RT-sarja 700 bar)
Kiinnityskierteet lisävarusteille kestävät täyden sylinterikuorman.
Pinnat on maalattu kuumaepoksimenetelmällä
Kaikkiin sylintereihin on merkitty maksiminimellispaine, valmistusaika ja teho (short ton)
Täyttää standardien ANSI B30.1 ja CE vaatimukset.
Kaikilla sylintereillä Powerthon Lifetime Marathon Warranty.

Order NoTonnage (tons)Stroke (mm)Swivel cap diameter (mm)Bore diameter (mm)Cylinder effective area advance (sq. cm)Cylinder effective area retract (sq. cm)Oil capacity extend (cu. cm)Oil capacity retract (cu. cm)Int. Press at cap (bar)Tons at 690 bar (s. tons)Weight kg
RDG5525550,870,695,371,333362167,668755,217,9
RDG55455101,670,695,371,333724335,168755,221,9
RDG55655152,470,695,371,3331.086,0502,768755,226
RDG55855203,270,695,371,3331.448,0670,368755,230
RDG55105525470,695,371,3331.809,9837,868755,234,1
RDG551255304,870,695,371,3332.171,91.005,468755,238,2
RDG551355330,270,695,371,3332.352,91,089.268755,240,2
RDG551455355,670,695,371,3332.533,91.173,068755,242,2
RDG7527550,882,3111,29747,6492,7241,668875,223,5
RDG75475101,682,3111,29747,6985,3483,268875,228,3
RDG75675152,482,3111,29747,61.478,0724,768875,233,2
RDG75875203,282,3111,29747,61.970,7966,368875,238
RDG75107525482,3111,29747,62.463,31.207,968875,242,9
RDG751275304,882,3111,29747,62.956,01.449,568875,237,8
RDG751375330,282,3111,29747,63.202,31.570,368875,250,2
RDG751475355,682,3111,29747,63.448,71.691,168875,252,6
RDG100210050,898,3130,2133,162676,3314,9668103,130,7
RDG1004100101,698,3130,2133,1621.352,6629,7668103,136,9
RDG1006100152,498,3130,2133,1622.028,8944,6668103,143
RDG1008100203,298,3130,2133,1622.705,11.259,5668103,149,2
RDG1001010025498,3130,2133,1623.381,41.574,4668103,155,3
RDG10012100304,898,3130,2133,1624.057,71.889,2668103,161,4
RDG10013100330,298,3130,2133,1624.395,82.046,7668103,164,5
RDG10014100355,698,3130,2133,1624.734,02.204,1668103,167,6
RDG150215050,8117,6158,819895,51.005,6485,1674153,446,7
RDG1504150101,6117,6158,819895,52.011,3970,2674153,455,1
RDG1506150152,4117,6158,819895,53.016,91.455,3674153,463,4
RDG1508150203,2117,6158,819895,54.022,51.940,4674153,471,7
RDG15010150254117,6158,819895,55.028,22.425,5674153,480.0
RDG15012150304,8117,6158,819895,56.033,82.910,7674153,488,4
RDG15013150330,2117,6158,819895,56.536,63.153,2674153,492,5
RDG15014150355,6117,6158,819895,58.2103.395,8674153,496,7
RDG200220050,8136,4184,2266,3126,91.353,1644,5668206,467,9
RDG2004200101,6136,4184,2266,3126,92.706,11.289,0668206,479,2
RDG2006200152,4136,4184,2266,3126,94.059,21.933,4668206,490,5
RDG2008200203,2136,4184,2266,3126,95.412,22.577,9668206,4101,8
RDG20010200254136,4184,2266,3126,96.765,33.222,4668206,4113,1
RDG20012200304,8136,4184,2266,3126,98.118,33.866,9668206,4124,5
RDG20013200330,2136,4184,2266,3126,98.794,94.189,1668206,4130,1
RDG20014200355,6136,4184,2266,3126,99.471,44.511,4668206,4135,8
ABCFGHK
Order NoRetracted height (mm)Extended height (mm)Cylinder diameter (mm)Base to port (mm)Top to port (mm)Piston rod diameter (mm)Swivel cap protrusion (mm)
RDG552199,1249,9132,1414169,817
RDG554249,9351,5132,1414169,817
RDG556300,7453,1132,1414169,817
RDG558351,5554,7132,1414169,817
RDG5510402,3656,3132,1414169,817
RDG5512453,1757,9132,1414169,817
RDG5513478,5808,7132,1414169,817
RDG5514503,9859,5132,1414169,817
RDG752211,1261,9146,844,844,879,319,3
RDG754261,9363,5146,844,844,879,319,3
RDG756312,7465,1146,844,844,879,319,3
RDG758363,5566,7146,844,844,879,319,3
RDG7510414,3668,3146,844,844,879,319,3
RDG7512465,1769,9146,844,844,879,319,3
RDG7513490,5820,7146,844,844,879,319,3
RDG7514515,9871,5146,844,844,879,319,3
RDG1002221271,8165,947,147,195,223,4
RDG1004271,8373,4165,947,147,195,223,4
RDG1006322,6475165,947,147,195,223,4
RDG1008373,4576,6165,947,147,195,223,4
RDG10010424,2678,2165,947,147,195,223,4
RDG10012475779,8165,947,147,195,223,4
RDG10013500,4830,6165,947,147,195,223,4
RDG10014525,8881,4165,947,147,195,223,4
RDG1502238288,8198,153,553,5114,224,1
RDG1504288,8390,4198,153,553,5114,224,1
RDG1506339,6492198,153,553,5114,224,1
RDG1508390,4593,6198,153,553,5114,224,1
RDG15010441,2695,2198,153,553,5114,224,1
RDG15012492796,8198,153,553,5114,224,1
RDG15013517,4847,6198,153,553,5114,224,1
RDG15014542,8898,4198,153,553,5114,224,1
RDG2002255305,8228,657,257,2133,326,9
RDG2004305,8407,4228,657,257,2133,326,9
RDG2006356,6509228,657,257,2133,326,9
RDG2008407,4610,6228,657,257,2133,326,9
RDG20010458,2712,2228,657,257,2133,326,9
RDG20012509813,8228,657,257,2133,326,9
RDG20013534,4864,6228,657,257,2133,326,9
RDG20014559,8915,4228,657,257,2133,326,9
