RGG -sylinterit

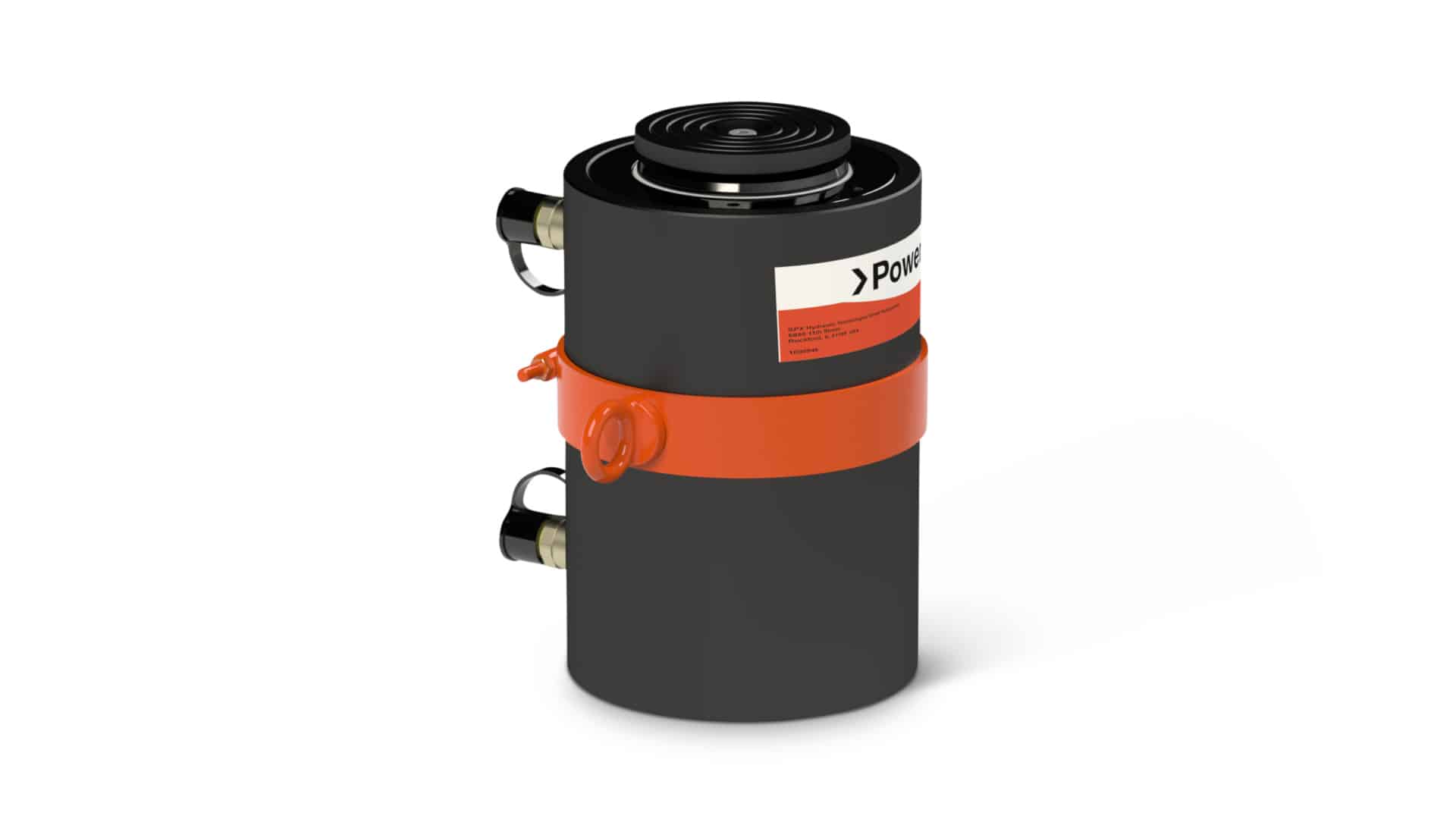

Power Team RGG -sylinterit. Nämä ovat raskaan sarjan nostimia. Alkaen 250 tonnista väkevämpään. 5 astetta kallistuva satula on vakiona.

Power team sylintereiden ominaisuuksia:
Sylinteriporaukset on rullavalssattu. Tällä menetelmällä saadaan aikaiseksi kovempi ja tasaisempi pinta, parempi korroosionkesto ja 30 prosenttia pidempi tiivisteiden ikä.
Terässylintereiden kulutukselle altteimmat kohdat on pinnoitettu joko sinkki-, kromi-, tai Power Tech pinnoitteella.
Alumiinisylinterit on pinnoitettu korroosiota vastaan.
Sylinteriputkien raaka-ainetangot on tutkittu magneettisesti.
Päätypysäytyslaakerilla varustetut sylinterit voidaan kuormittaa täydellä 700 barin paineella täyteen iskuunsa.
Kaikki sylinterit on testattu tehtaalla 861 barin paineella ennen pakkausta. (paitsi RT-sarja 700 bar)
Kiinnityskierteet lisävarusteille kestävät täyden sylinterikuorman.
Pinnat on maalattu kuumaepoksimenetelmällä
Kaikkiin sylintereihin on merkitty maksiminimellispaine, valmistusaika ja teho (short ton)
Täyttää standardien ANSI B30.1 ja CE vaatimukset.
Kaikilla sylintereillä Powerthon Lifetime Marathon Warranty.

Order NumberTonnage (s. tons)Stroke (mm)Swivel cap diameter (mm)Bore diameter (mm)Cylinder effective area (sq. cm)Oil Capacity (cu. cm)Int. Press. At cap (bar)Tons at 690 bar (metric tons)Weight kg
RGG5525550,870,695,371,336268750,117,7
RGG55455101,670,695,371,3724.068750,121,7
RGG55655152,470,695,371,31.086,068750,125,8
RGG55855203,270,695,371,31.448,068750,129,9
RGG55105525470,695,371,31.809,968750,133,9
RGG551255304,870,695,371,32.171,968750,139,3
RGG551355330,270,695,371,32.533,968750,140,1
RGG551455355,670,695,371,32.54068750,142,1
RGG7527550,882,3111,297492,768868,223,3
RGG75475101,682,3111,297985,368868,228,1
RGG75675152,482,3111,2971.478,068868,233
RGG75875203,282,3111,2971.970,768868,237,9
RGG75107525482,3111,2972.463,368868,242,7
RGG751275304,882,3111,2972.956,068868,247,6
RGG751375330,282,3111,2973.202,368868,250
RGG751475355,682,3111,2973.448,768868,252,4
RGG100210050,898,3130,2133,1676,366893,530,7
RGG1004100101,698,3130,2133,11.352,666893,536,3
RGG1006100152,498,3130,2133,12.028,866893,543
RGG1008100203,298,3130,2133,12.705,166893,549,1
RGG1001010025498,3130,2133,13.381,466893,555,3
RGG10012100304,898,3130,2133,14.057,766893,561,4
RGG10013100330,298,3130,2133,14.395,866893,564,5
RGG10014100355,698,3130,2133,14.734,066893,567,5
RGG150215050,8117,6158,81981.005,6674139,146,7
RGG1504150101,6117,6158,81982.011,3674139,155
RGG1506150152,4117,6158,81983.016,9674139,163,3
RGG1508150203,2117,6158,81984.022,5674139,171,6
RGG15010150254117,6158,81985.28,2674139,180
RGG15012150304,8117,6158,81986.033,8674139,188,3
RGG15013150330,2117,6158,81986.536,6674139,192,4
RGG15014150355,6117,6158,81987.039,4674139,196,6
RGG200220050,8136,4184,2266,31.353,1668187,267,9
RGG2004200101,6136,4184,2266,32.706,1668187,279,2
RGG2006200152,4136,4184,2266,34.049,2668187,290,5
RGG2008200203,2136,4184,2266,35.412,2668187,2101,7
RGG20010200254136,4184,2266,36.765,3668187,2113,1
RGG20012200304,8136,4184,2266,38.118,3668187,2124,4
RGG20013200330,2136,4184,2266,38.794.9668187,2130
RGG20014200355,6136,4184,2266,39.471,4668187,2135,7
Order NoRetracted height (mm)Extended height (mm)Cylinder diameter (mm)Base to port (mm)Piston rod diameter (mm)Swivel cap protrusion (mm)
RGG552199,1249,9131,14169,817
RGG554249,9351,5131,14169,817
RGG556300,7453,1131,14169,817
RGG558351,5554,7131,14169,817
RGG5510402,3656,3131,14169,817
RGG5512453,1757,9131,14169,817
RGG5513478,5808,7131,14169,817
RGG5514503,9859,5131,14169,817
RGG752211,1261,9146,844,879,319,3
RGG754261,9363,5146,844,879,319,3
RGG756312,7465,1146,844,879,319,3
RGG758363,5566,7146,844,879,319,3
RGG7510414,3668,3146,844,879,319,3
RGG7512465,1769,9146,844,879,319,3
RGG7513490,5820,7146,844,879,319,3
RGG7514515,9871,5146,844,879,319,3
RGG1002221271,8165,947,195,223,4
RGG1004271,8373,4165,947,195,223,4
RGG1006322,6475165,947,195,223,4
RGG1008373,4576,6165,947,195,223,4
RGG10010424,2678,2165,947,195,223,4
RGG10012475779,8165,947,195,223,4
RGG10013500,4830,6165,947,195,223,4
RGG10014525,8881,4165,947,195,223,4
RGG1502238288,8198,153,5114,224,1
RGG1504288,8390,4198,153,5114,224,1
RGG1506339,6492198,153,5114,224,1
RGG1508390,4593,6198,153,5114,224,1
RGG15010441,2695,2198,153,5114,224,1
RGG15012492796,8198,153,5114,224,1
RGG15013517,4847,6198,153,5114,224,1
RGG15014542,8898,4198,153,5114,224,1
RGG2002255305,8228,657,2133,326,9
RGG2004305,8407,4228,657,2133,326,9
RGG2006356,6509228,657,2133,326,9
RGG2008407,4610,6228,657,2133,326,9
RGG20010458,2712,2228,657,2133,326,9
RGG20012509813,8228,657,2133,326,9
RGG20013534,4864,6228,657,2133,326,9
RGG20014559,8915,4228,657,2133,326,9
Tonnage5575100150200
# of Base Mounting Holes44444
Base thread sizeM12X1.75 – 6HM12X1.75 – 6HM16X1.5 – 6HM16X1.5 – 6HM20X1.5 – 6H
Base thread depth (mm)18,0118,0115,7522,8630,48
Base Mounting Diameter (mm)76,9792,96101,6130,05145,29
OrientationMounting hole orientation is not maintained to port location.
Tonnage250300400500600
# of Base Mounting Holes44444
Base thread sizeM24x3.0 – 6HM24x.0 – 6HM30x3.5 – 6HM30x3.5 – 6HM33X2.0 – 6H
Base thread depth (mm)373745,738,149,5
Base Mounting Diameter (mm)153,9179,3194,3227,3245,1
OrientationMounting hole orientation is not maintained to port location.
